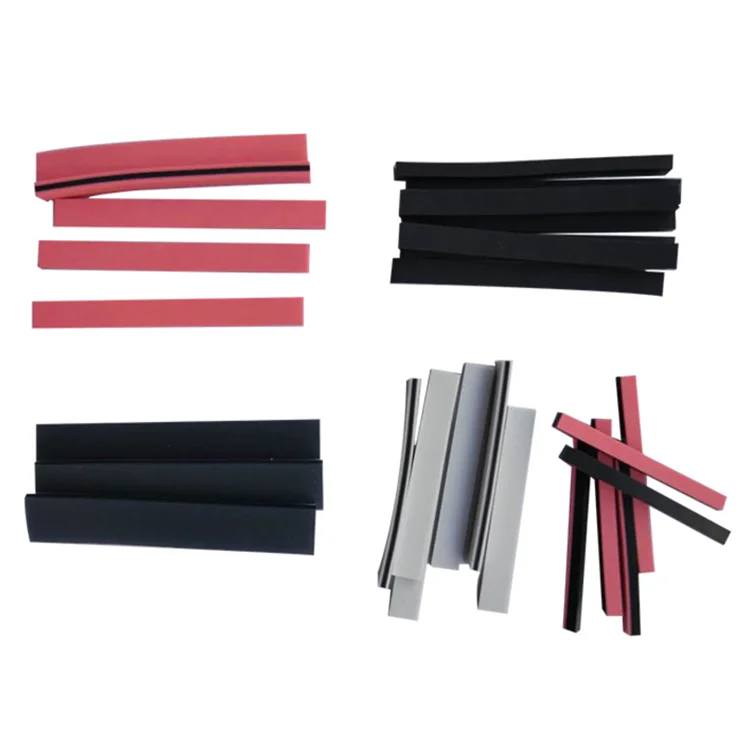

Good price LCD conductive zebra elastomeric connectors

FOB Reference Price:Get Latest Price
  • >=10000 Pieces
    $0.03
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 100000 Pieces)
Customized logo (Min. Order: 100000 Pieces)

More

Graphic customization (Min. Order: 100000 Pieces) Less
Samples:
$0.01 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
DESAN
Model Number:
DSA264912
Supply Ability
Supply Ability:
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
PE Bags+Carton, We can package according to customer's requirement
Port
Shanghai,Anqing
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 15 To be negotiated
Product Description

       OEM & ODM are welcome!



                  YS  L70.5×H6.9×W2.2 mm     Pitch 0.10mm



Item

size

Tolerance  mm

L

50.1——100.0

±0.20

H

3.1——7.0

±0.10

W

0.4——3.0

±0.10

Elastomeric connectors with different Shore-Numbers (degree of hardness) for different screen sizes.

Inquiry to Jacob welcome!



SPECIFICATION

Items

Insulator

Conductor

Supporter

        Test method

Main material

Silicone

Silicone

Silicone

-

Color

White

Black

Transparent

visual

Shore A hardness

55-65A

65-75A

35-45A

GB/T 531.1

Specific gravity

1.00-1.2g/cm3

1.00-1.20g/cm3

1.00-1.20g/cm3

-

Elongation at break

150-250%

150-200%

300-400%

GB/T528

Ensile strength

70-80kg/cm2

50-60kg/cm2

30-40kg/cm2

GB/T528

Volume resistance

≤1012Ω ·cm

≤6Ω ·cm

≤1012Ω ·cm

GB/T 1692

Mass loss

≤1.0%

-

Extract weight loss



≤3.5%

Isopropyl alcohol

extraction

Using condition

Temperature -25-100 ° C

humidity ≤ 95% RH

air pressure 86-106 kPa

-





Conductive rubber connectors have alternating conductive and non-conductive layers, for two contacts areas PCB to LCD or PCB to PCB. Each type of connectors with or without outer support sections which would create the product flexibility. We offer high quality conductive connectors for customer different requirement.





Any color, any size we can make it for you!

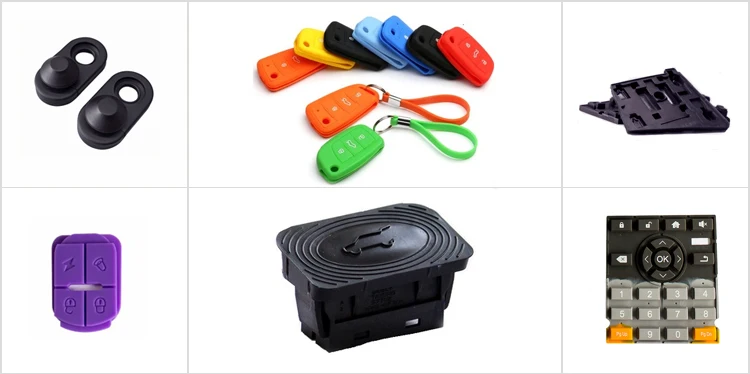

Company Information



Certifications

SGS    FDA   LFGB   Rohs  IATF16949

ISO9001: 2015 international quality certification

ISO14001: 2015 international environmental certification




FAQ

Q: Are you a manufacturer?

A: Yes, we are a manufacturing and trading combo with our own molds and production lines.



Q: What about your service?

A: We provide one-series service: design, mold opening, production, quality control and

after-sales service.



Q: Can you produce the design drawings?

A: Yes, we have professional engineer team to design variety products.



Q: How about the sample?

A: Normally, sample is free without freight fee.



Q: How to know the quality?

A: Welcome to our factory to investigate, also we can provide samples for you to check

quality.



Q: Can you do OEM&ODM?

A: Both OK. Welcome!
